Novastar Vx-Series Video Controller
This vx-series is novastar’s new all-in-one controller that integrates video processing and video control into one box, main model including VX400, VX600, VX1000, VX16S(can replace discontinued Novastar VX2S/VX4S/VX6S), this led vide controller can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch applications.
1. 10 Ethernet Ports Just The Right Amount:
1). 10 Ethernet ports of output provide 6.5 million pixels of loading capacity
2). A single unit can output a maximum width of 10,240 pixels, with a maximum height of 8,192 pixels
2. High Image Quality 4k With 3 Layers:
1). 4K x 1K@60Hz high resolution input, 4K x 1K point to point display
2). 3 x 4K layers, free scaling for each layer
3. One Device 3 Working Modes:
Video Controller, ByPass, Fiber Converter, free switching between three modes

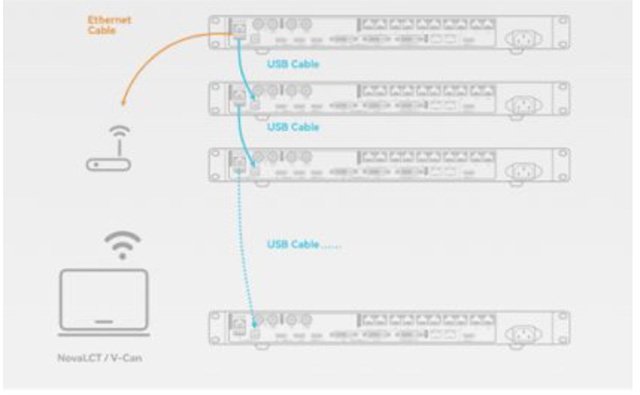

4. Complete Redundant System For Maximum Stability:
Support for redundant input source, system configuration, ethernet ports, and devices Providing total security from start to finish.
5. Convenient Control:
1). Ultra-low 1 frame latency; 2). 10 customizable presets;
3). 3D solution; 4). Long-distance optical transmission.
6. Novastar VX-Series Video Controller Parameter Comparison：
| Device Model | VX400 | VX600 | VX1000 |
| Loading Capacity | 2.6 million pixels | 3.9 million pixels | 6.5 million pixels |
| Max Width & Height | Max width: 10240 pixels / Max height: 8192 pixels | ||
| Layers | 2x 2K×1K | 3x 2K×1K | 3x 4K×1K |
| Input Connectors | 1x 3G-SDI 2x HDMI 1.3 1x DVI 1x OPT1 | 1x 3G-SDI 2x HDMI 1.3 1x DVI 1x OPT1 | 1x 3G-SDI 2x HDMI 1.4 2x DVI（HDMI 1.4） 1x OPT1 |
| Output Connectors | 4x Ethernet Ports 1x HDMI1.3 1x HDMI1.3 LOOP 1x DVI LOOP 1x 3G-SDI LOOP 2x OPT | 6x Ethernet Ports 1x HDMI1.3 1x HDMI1.3 LOOP 1x DVI LOOP 1x 3G-SDI LOOP 2x OPT | 10x Ethernet Ports 1x HDMI1.3 1x HDMI1.4 LOOP 1x DVI LOOP 1x 3G-SDI LOOP 2x OPT |
| Presets | 10 | 10 | 10 |
| Control Connectors | 1x Ethernet Port 2x USB (input & output) 1x Light Sensor | 1x Ethernet Port 2x USB (input & output) 1x GENLOCK (IN & LOOP) | 1x Ethernet Port 2x USB (input & output) 1x GENLOCK (IN & LOOP) |
7. Novastar VX400/VX600/VX1000/VX16S Video Controller Manual Download：
Novastar VX400 LED Video Controller Features:
1. Input Connectors:
1). 1x HDMI 1.3 (IN & LOOP);
2). 1x HDMI 1.3;
3). 1x DVI (IN & LOOP);
4). 1x 3G-SDI (IN & LOOP);
5). 1x optical fiber port (OPT1).
2. Output Connectors:
1). 4x Gigabit Ethernet ports
A single device unit drives up to 2.6 millionpixels, with a maximum width of 10,240pixels and a maximum height of 8192 pixels.
2). 2x Fiber outputs
OPT 1 copies the output on 4 Ethernet ports.OPT 2 copies or backs up the output on 4Ethernet ports.
3). 1x HDMI 1.3
For monitoring or video output.
3. Self-adaptive OPT 1:
Thanks to the self-adaptive design, OPT 1 canbe used as either an input or output connector,depending on its connected device.
4. Audio Input and Output:
1). Audio input accompanied with HDMI inputsource
2). Audio output via a multifunction card
3). Output volume adjustment supported
5. Low Latency:
Reduce the delay from the input to receivingcard to 20 lines when the low latency function and Bypass mode are both enabled
6. 2x Layers:
1). Adjustable layer size and position
2). Adjustable layer priority
7. Output Synchronization:
An internal input source can be used as the sync source to ensure the output images of all ascaded units in sync.
Novastar VX600 LED Video Controller Features:
Novastar VX600 is Novastar’s new all-in-one video controller that integrates video processing and video control into one box. It features 6 ethernet ports and supports video controller, fiber converter and bypass working modes. A VX600 unit can drive up to 3.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide and uh led screens.
Novastar VX600 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience. What’s more, Novastar VX600 can work with Novastar’s supreme software NovaLCT and V-Can to greatly facilitate your infield operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management and firmware update. Thanks to its powerful video processing and sending capabilities and other outstanding features, Novastar VX600 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch led screens.
1. Input Connectors:
1). 1x HDMI 1.3 (IN & LOOP)
2). 1x HDMI 1.3
3). 1x DVI (IN & LOOP)
4). 1x 3G-SDI (IN & LOOP)
5). 1x 10G optical fiber port (OPT1)
2. Output Connectors:
1). 6x Gigabit Ethernet ports
A single device unit drives up to 3.9 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.
2). 2x Fiber outputs
OPT 1 copies the output on 6 Ethernet ports.
OPT 2 copies or backs up the output on 6 Ethernet ports.
3). 1x HDMI 1.3
3. For Monitoring or Video Output:
Self-adaptive OPT 1 for either video input or sending card output Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device.
4. Audio Input and Output:
1). Audio input accompanied with HDMI input source
2). Audio output via a multifunction card
3). Output volume adjustment supported
5. Low Latency:
Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled.
6. 3x layers:
1). Adjustable layer size and position
2). Adjustable layer priority
7. Output Synchronization:
An internal input source or external Genlock can be used as the sync source to ensure the output images of all cascaded units in sync.
8. Powerful Video Processing:
1). Based on SuperView III image quality processing technologies to provide stepless output scaling
2). One-click full screen display
3). Free input cropping
9. Easy Preset Saving and Loading:
1). Up to 10 user-defined presets supported
2). Load a preset by simply pressing one button
10. Multiple Kinds of Hot Backup:
1). Backup between devices
2). Backup between Ethernet ports
3). Backup between input sources
11. Mosaic Input Source Supported:
The mosaic source is composed of two sources (2K×1K@60Hz) accessed to the OPT 1.
12. Up to 4 units cascaded for image mosaic:
13. Three Working Modes:
1). Video Controller
2). Fiber Converter
3). Bypass
14. All-round Color Adjustment:
Input source and LED screen color adjustment supported, including brightness, contrast,saturation, hue and Gamma Pixel level brightness and chroma calibration
15. Work with NovaLCT and NovaStar calibration software to support brightness and chroma calibration on each LED, effectively removing color discrepancies and greatly improving LED display brightness and chroma consistency,allowing for better image quality.
16. Multiple Operation Modes:
Control the device as you wish via V-Can,NovaLCT or device front panel knob and buttons.
Novastar VX1000 LED Video Controller Features:
Novastar VX1000 All-in-One led screen controller is Novastar’s new all-in-one controller that integrates video processing and video control into one box. It features 10 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX1000 unit can drive up to 6.5 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels, respectively, which is ideal for ultra-wide and ultra-high led screen applications. Novastar VX1000 is a high-performance video processor specially developed for LED display design. As the core device of video processing, VX1000 has excellent image and video processing capabilities and can handle multiple input sources and resolutions to ensure high quality and clarity of displayed content.
VX1000 adopts advanced pixel-level correction technology to achieve a more uniform and consistent display effect by precisely adjusting the brightness, color and color temperature of the LED module. It also supports color management, which can perform color correction and mapping according to actual needs to ensure the accuracy and consistency of displayed colors. In addition, VX1000 is equipped with a powerful image enhancement function, which can perform image sharpening, noise reduction, and color enhancement to improve image details and clarity, making the display effect more realistic and vivid. VX1000 price also has flexible display settings and multiple control methods. Users can adjust parameters and control display through local panel, remote control software or network interface. It supports a variety of input interfaces, such as HDMI, DVI, DP, etc., which can flexibly meet the needs of different signal sources. Overall, Novastar VX1000 is a powerful, reliable and stable video processor that provides excellent image and video processing capabilities for LED displays, helping users achieve high-quality, impressive display effects.
1). With load: 6.5 megapixels, width 10240, height 8192;
2). Layers: 3 x 4K1K layers;
3). Input: 3G-SDI*1, HDMI1.4*2, DVI(HDMI 1.4)*2, OPT1 input*1;
4). Output interface: Network port*10 HDMI 1.3*1;
5). Optical interface: OPT*2;
6). Control interface: Port USB (input/output) Genlock (IN-LOOP);
7). Other functions: spliceable, cascadable, customizable;
8). Support scene saving, calling, picture quality adjustment.
