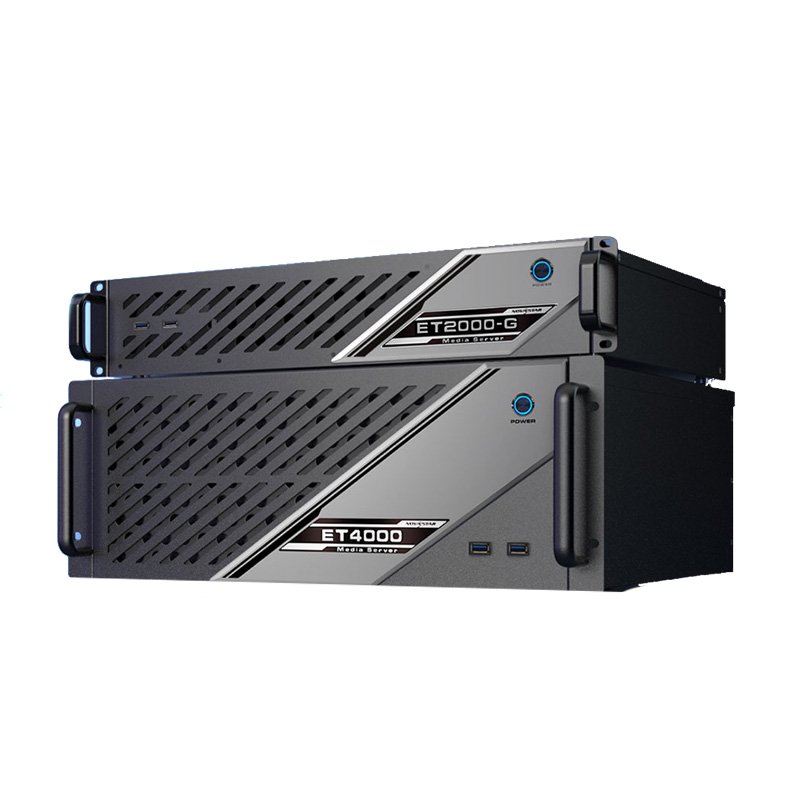

Novastar ET2000-G/ET4000 Media Server
Novastar’s ET4000 & ET2000-G Media Server control systems are designed specifically for high-definition jumbotron applications such as multimedia digital exhibition halls, live conference rooms, and data monitoring centers.
They support ultra-high resolutions up to 8K/16K for direct display and offer versatile creative display splicing.
Combined with the professional multimedia control software KompassFX3/FX2, these systems provide powerful audiovisual playback and media arrangement capabilities, offering a convenient multimedia management experience for video professionals.
1. Smooth 8K Point-to-Point Playback
Novastar ET2000-G/ET4000 media server supports 2/4 channels of 4K×2K output, effortlessly handling pixel-perfect splicing displays like 8Kx2K@60Hz/8Kx4K@60Hz. With Novastar’s powerful graphic rendering engine and advanced multi-output synchronization technology, it effectively eliminates tearing and stuttering, delivering users an ultra-clear and seamless experience.
2. Hardware Decoding 16K Video Playback System
Utilizing professional graphics card hardware decoding and rendering technology, effortlessly achieve smooth playback of ultra-high-definition 16K@60fps videos or multiple 4K@60fps video clips. It supports hardware decoding for video formats such as H.264, H.265, VP9, and hardware acceleration for HAP format.
3. Synchronized Video Encoding System
Professional playback control software allows visual management of broadcasting, material adjustments, priority settings, and more via the VICP App on tablet terminals. This greatly simplifies system operation and management, achieving centralized control in a one-stop solution. The software features flexible program management to meet various unmanned playback needs.
4. Creative Display
The system supports unlimited cropping and reorganization of display outputs, breaking away from the confines of rectangular outputs. Irregular screens can easily be integrated for display, allowing for various screen effects like splitting, folding, and rotating.

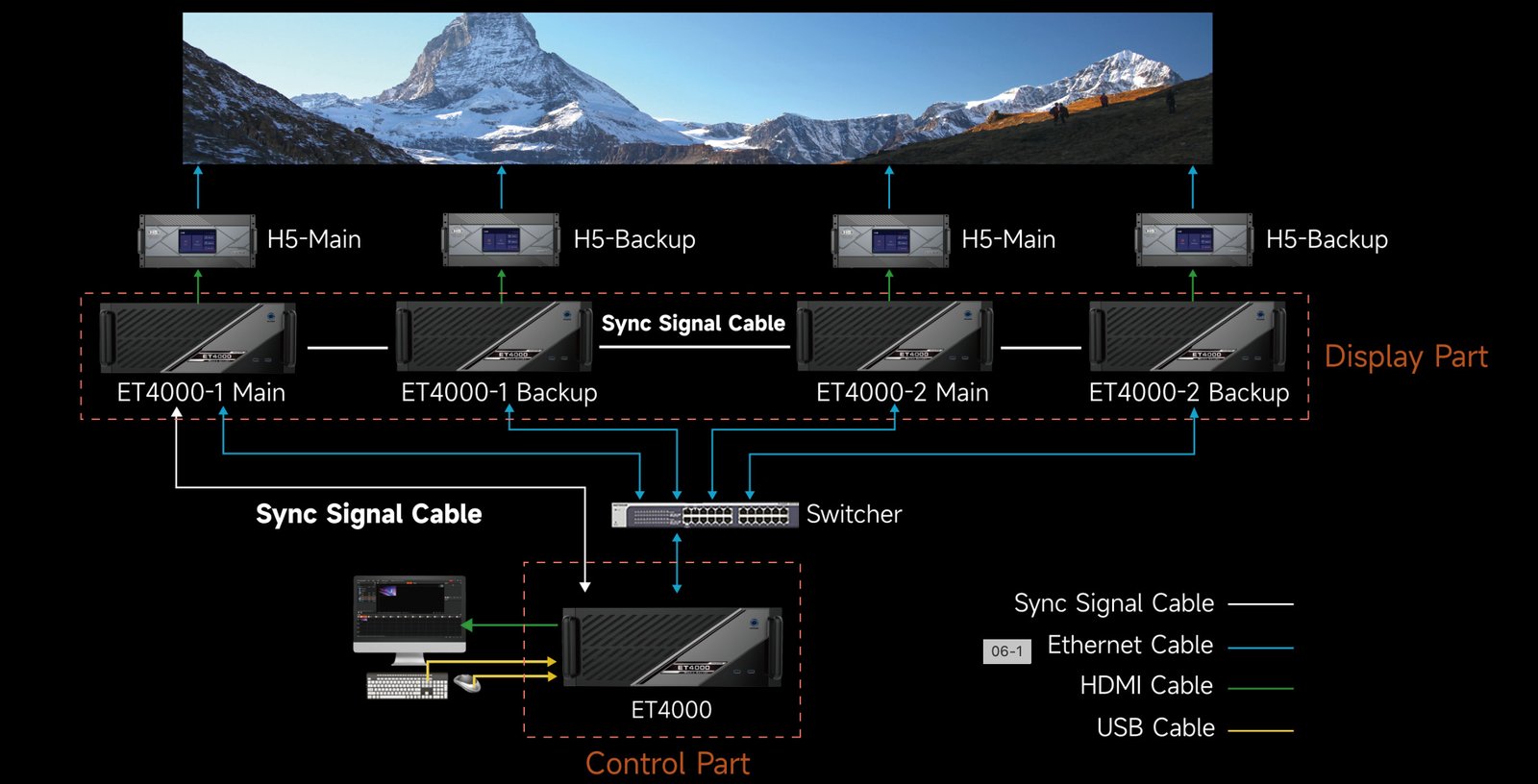

5. Stable Multi-Machine Cascade Hot Backup Function
Using industry-leading FSD frame synchronization technology, it achieves frame-level synchronization for seamless multi-server splicing displays without tearing, supporting up to N×8K loads. The display/control end provides full-link hot backup: in case of main link failure or abnormal playback, the system automatically switches to the backup link, ensuring stability and reliability.
Novastar ET2000-G Media Server Features:
• A single unit supports up to 8K×2K output capacity, ultra-high-resolution video decoding and pixel-to-pixel display
• Up to 3x Mini DP 1.2 mosaic outputs
• Playback of up to 3 layers and 1 audio simultaneously
• Visualized program arrangement and management
• Live and pre-edit modes
• The program editing and playback are in sync in live mode
• Edit the programs first before displaying them on the screen in pre-edit mode
• Media library management, including videos, pictures, PowerPoint files and audios
• Media file sorting
• Media file batch import
• NDI sources, website sources and streaming media sources supported
• Media collection configurations
• Up to 1080p PowerPoint files supported
• Using a laser pointer for moving between slides in PowerPoint
• Playback progress management
• Program auto jump
• Configurable layer size and priority
• Main KV jumping settings
• Main media based playback progress management
• Crossfade on program switching
• Layer mask, cropping, keying, blurring and opacity adjustment
• Hardware decoding supported
• One-click FTB
• Auto startup of built-in software on system power on, auto program playback on software startup App control supported, enabling a highly efficient and user-friendly control experience
Novastar ET4000 Media Server Features:
• A single unit supports up to 8K×4K output capacity, ultra-high-resolution video decoding and pixel-to-pixel display
• Free partitioning, reorganizing and rotating of multiple outputs for irregular screen configuration, unleashing your creative mosaic ideas
• A single output can be split into up to 16 partitions, allowing for quick mapping settings and ultra-wide screen configuration
• Playback of up to 8 layers and 1 audio simultaneously
• Visualized program arrangement and management
• Live and pre-edit modes
− The program editing and playback are in sync in live mode
− Edit the programs first before displaying them on the screen in pre-edit mode
• Media library management, including videos, pictures, • PowerPoint files and audios
• Media file sorting
• Media file batch import
• Up to 1080p PowerPoint files supported
• Using a laser pointer for moving between slides in PowerPoint
• Playback progress management
• Shortcut key for program jumping and auto jumping settings
• Configurable layer size and priority
• Main KV jumping settings
• Main media based playback progress management
• Crossfade on program switching
• Layer mask, cropping, keying, blurring and opacity adjustment
• Hardware decoding supported
• One-click FTB
• Auto startup of built-in software on system power on, auto program playback on software startup
• Control software VCCP (Visual Centralized Control Platform), enabling a highly efficient and user-friendly control experience
Novastar ET2000-G/ET4000 Comparison
| Specifications | ET2000-G | ET4000 | |
| Chassis | 2U | 4U | |
| Memory | 16G | 32G | |
| Storage | 250G High-Speed Solid State Drive | 250G+500G High-Speed Solid State Drive | |
| Graphics Card | T400 | MPG2200 | HPGA4000/HPGA5000 |
| Loading Capacity | 2* 4Kx2K@60HZ | 4* 4Kx2k@60HZ | |
| Decoding Ability | DXVA+Software Decoding 1*8Kx2K@60fps or 2*4Kx2K@60fps | DXVA+Software Decoding 1*8Kx4K@30fps or 3*4K2K@60fps | DXVA+Software Decoding 1*8Kx4K@60fps or 4*4Kx2K@60fps |
| Hot Backup | Not Support | Not Support | Support |
| Cascading | Not Support | Not Support | Support |
| Playback Software | Kompass FX2 and Dongle | Kompass FX3 and Dongle | |
| Layer Specifications | 4 Layers + 1 Audio Layer (Non-expandable) | 8 Layers + 1 Audio Layer (Expandable) | |
| Visual Control on Tablet | Support | ||
| Third-party Control | Support | ||
