Product Features Introduction

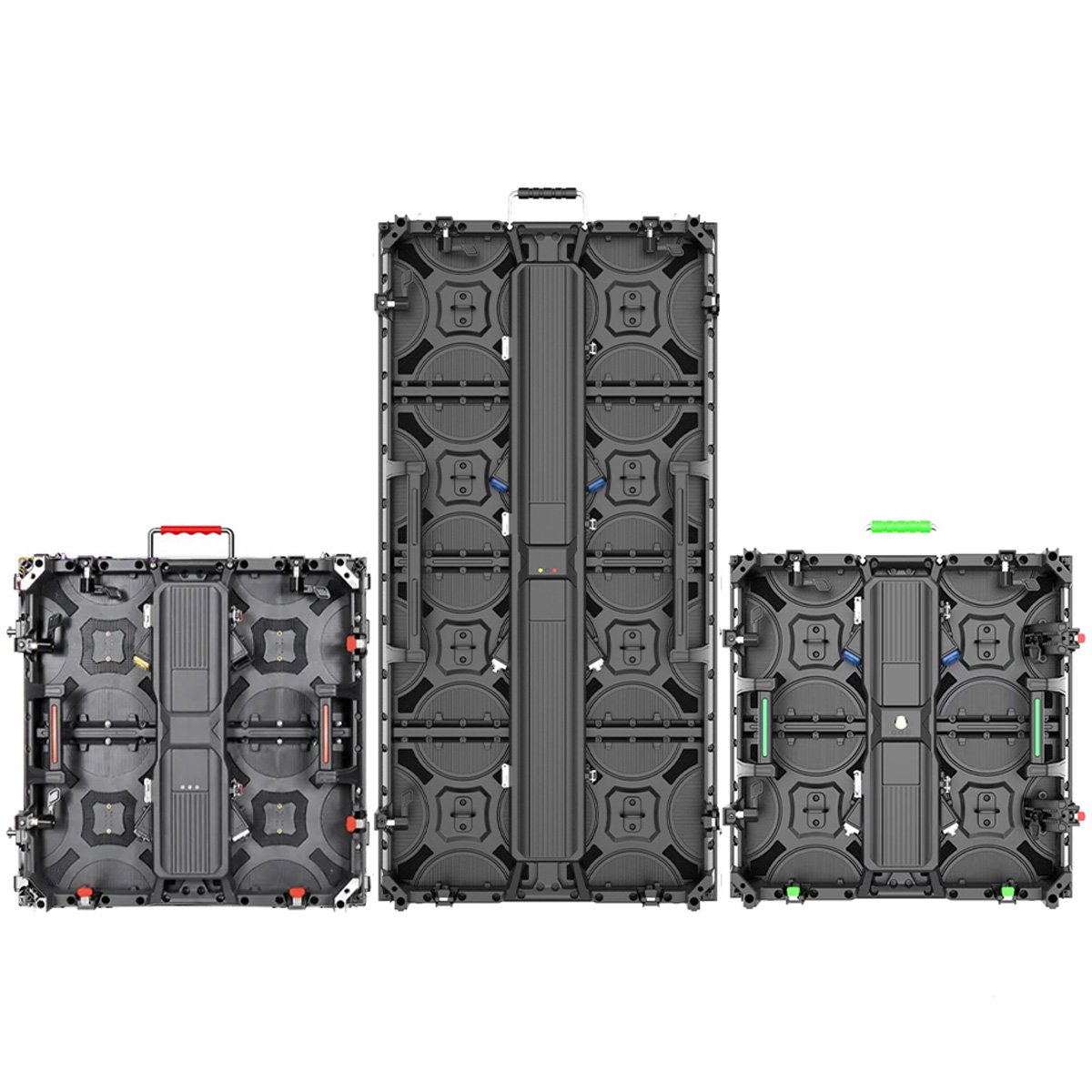

Rental LED Display RS-Series is a economical rental high-definition led display, usually used for advertising, video, picture display in large-scale events and exhibitions. This series configuration LED: HS/RS LED, IC: DP3264S/DP3153, Chuanglian Power Supply+MRV412/DH7508). Its advantages include high brightness, high contrast, customizable, easy disassembly and assembly, and support for remote control.
1. Cost-effective Soft Connection
● Well-designed connections between components ensure safe, reliable performance and easy maintenance;
● The modules(4/8Pcs) are fixed to the cabinet with M4 screws, enhancing IP65 waterproofing;
● Optional configurations for led brand(default HS/RS), IC, power supply(default CZCL), and control system brands(default Novastar).
2. Perfect All-in-One Cabinet
● Every details, from the cabinet handle (optional colors) and fixed slots to the quick locks and installation knobs, reflects excellent design principles;
● The standard cabinet size is 500x500mm (1.64×1.64ft), made from ultra-light die-cast aluminum with a thickness of just 85mm, making it easy to transport, install, and carry.
3. Multi-Angle Design
● The cabinet can be equipped with curved locks and rotation control for quick curvature adjustments;
● The led panels can form a 45° angle, and two panels can create a 90° angle;
● It can also form a cube led screen, making it the best choice for right-angle column led displays.
4. Impact-Resistant Corner Design
● CNC precision machining ensures cabinet flatness ≤0.1mm for seamless splicing;
● The cabinet has four foldable corner protectors to safeguard the led display during assembly and transport.
5. Color Enhancement
● Our advanced color enhancement technology significantly improves color accuracy and vibrancy;
● By optimizing color reproduction, it ensures more vivid and lifelike visuals for an immersive viewing experience;
● Whether for professional presentations or entertainment, our vision technology delivers outstanding image quality.
Purchase Notes about LED Displays
1. Please purchase enough led displays and spare module and control card parts (3-5%) to build the overall led screen, as the same batch of led modules will use the same batch leds, ICs, and capacitors to ensure the same brightness, color temperature, angles and software settings;
2. The conventional configuration finished display (HS/RS LED+DP/FM) usually have in stock and can be shipped within 10-15 days; Customized items (Nationstar + ICN/MBI) can be shipped within 20-25 days, and require MOQ=50Pcs;
3. Our led modules/screen can be matched with mainstream led control systems such as Novastar, Linsn, and Colorlight, you can ask our sales staff for relevant settings files;
4. Our led modules/displays are provided with the necessary data ribbon cables and power cables for free. If you need special cables, additional charges will be required;
5. Our modules/displays are tested for 72 hours of aging before dispatch, white balance aging for 48 hours and video aging for 24 hours;
6. The led display price include charge DDP By Sea(20-25 days) but not include destination tariffs; if you want to via DHL(5-7 days), need add 10-15USD/Kg, please contact our sales to get specific charge.
7. Try to buy from the whole flight case (6-10Pcs/120Kg), carton meas: 1100*1100*1250mm;
8. Our led modules/displays have 3-year free warranty, returned it to the factory for repair, and the sender pays the freight.
Rental LED Display RS-Series Technical Parameters
| 1. Basic Parameters | |||||
| Pixel Pitch | 1.56 | 1.953 | 2.604 | 2.976 | 3.91 |
| Module Size | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Resolution/Pixels | 160*160 | 128*128 | 96*96 | 84*84 | 64*64 |
| LED (HS/RS/NATIONSTAR) | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Driver IC | DP3264S/ICN1065S | DP3153/ICN2153 | DP3153/ICN2153 | DP3153/ICN2153 | DP3153/ICN2153 |
| Driver Mode | 1/40 | 1/32 | 1/32 | 1/28 | 1/16 |
| 2. Electricity Parameters | |||||
| Brightness | 550 | 550 | 550 | 550 | 550 |
| Gray Scale | 8bits input, correction with 16bits | ||||
| Display Color | 16.7M | ||||
| View Angle | 140 degree ( horizontal) 140degree(vertical) | ||||
| View Distance | 2m-30m | ||||
| 3. Driver Power Supply | |||||
| Operation Power | AC100-240V 50-60HZ Switch-able | ||||
| Maxim Power Consumption | 1000 W/m2 | ||||
| Average Power Consumption | 450 W/m2 | ||||
| 4. Control System | |||||
| Refresh Frequency | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Correction Scale Level | 16bits | ||||
| Frame Update Frequency | 60Hz | ||||
| Gamma Correction | -5.0—5.0 | ||||
| Color Temperature | 5000-9300 adjustable | ||||
| Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI | ||||
| Control Distance | Ethernet cable 100m, optical fiber 5km | ||||
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 | ||||
| 5. Reliability | |||||
| Operating Temp | -20-60 Celsius Degrees | ||||
| Operating Humidity | 10-95% RH | ||||
| Operating Life | 100,000 hours | ||||
| MTBF | 5000 hours | ||||
| Protection Level | IP43 | ||||
| Out of Control Pixel Rate | 0.01% | ||||
| Continuous Working Time | ≥48 hours | ||||
| 1. Basic Parameters | ||||
| Pixel Pitch | 2.604 | 2.976 | 3.91 | 4.81 |
| Module Size | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Resolution/Pixels | 96*96 | 84*84 | 64*64 | 52*52 |
| LED (HS/RS/NATIONSTAR) | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Driver IC | DP3153/ICN2153 | DP3153/ICN2153 | DP3153/ICN2153 | DP3153/ICN2153 |
| Driver Mode | 1/24 | 1/21 | 1/16 | 1/13 |
| 2. Electricity Parameters | ||||
| Brightness | ≥4000cd | ≥≥4000cd | ≥4000cd | ≥4000cd |
| Gray Scale | 8bits input, correction with 16bits | |||
| Display Color | 16.7M | |||
| View Angle | 140 degree ( horizontal) 140degree(vertical) | |||
| View Distance | 3m-30m | |||
| 3. Driver Power Supply | ||||
| Operation Power | AC100-240V 50-60HZ Switch-able | |||
| Maxim Power Consumption | 1000 W/m2 | |||
| Average Power Consumption | 450 W/m2 | |||
| 4. Control System | ||||
| Refresh Frequency | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Correction Scale Level | 16bits | |||
| Frame Update Frequency | 60Hz | |||
| Gamma Correction | -5.0—5.0 | |||
| Color Temperature | 5000-9300 adjustable | |||
| Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI | |||
| Control Distance | Ethernet cable 100m, optical fiber 5km | |||
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 | |||
| 5. Reliability | ||||
| Operating Temp | -20-60 Celsius Degrees | |||
| Operating Humidity | 10-95% RH | |||
| Operating Life | 100,000 hours | |||
| MTBF | 5000 hours | |||
| Protection Level | IP65 | |||
| Out of Control Pixel Rate | 0.01% | |||
| Continuous Working Time | ≥48 hours | |||
